Vue ECharts

Vue ECharts

Vue.js component for Apache ECharts™.

npm version test coverage View demo 前往中文版

> Still using Vue 2? Read v7 docs [here →](https://github.com/ecomfe/vue-echarts/tree/7.x) ## Installation & usage ### npm ```sh npm install echarts vue-echarts ``` #### Example
Demo → ```vue ```

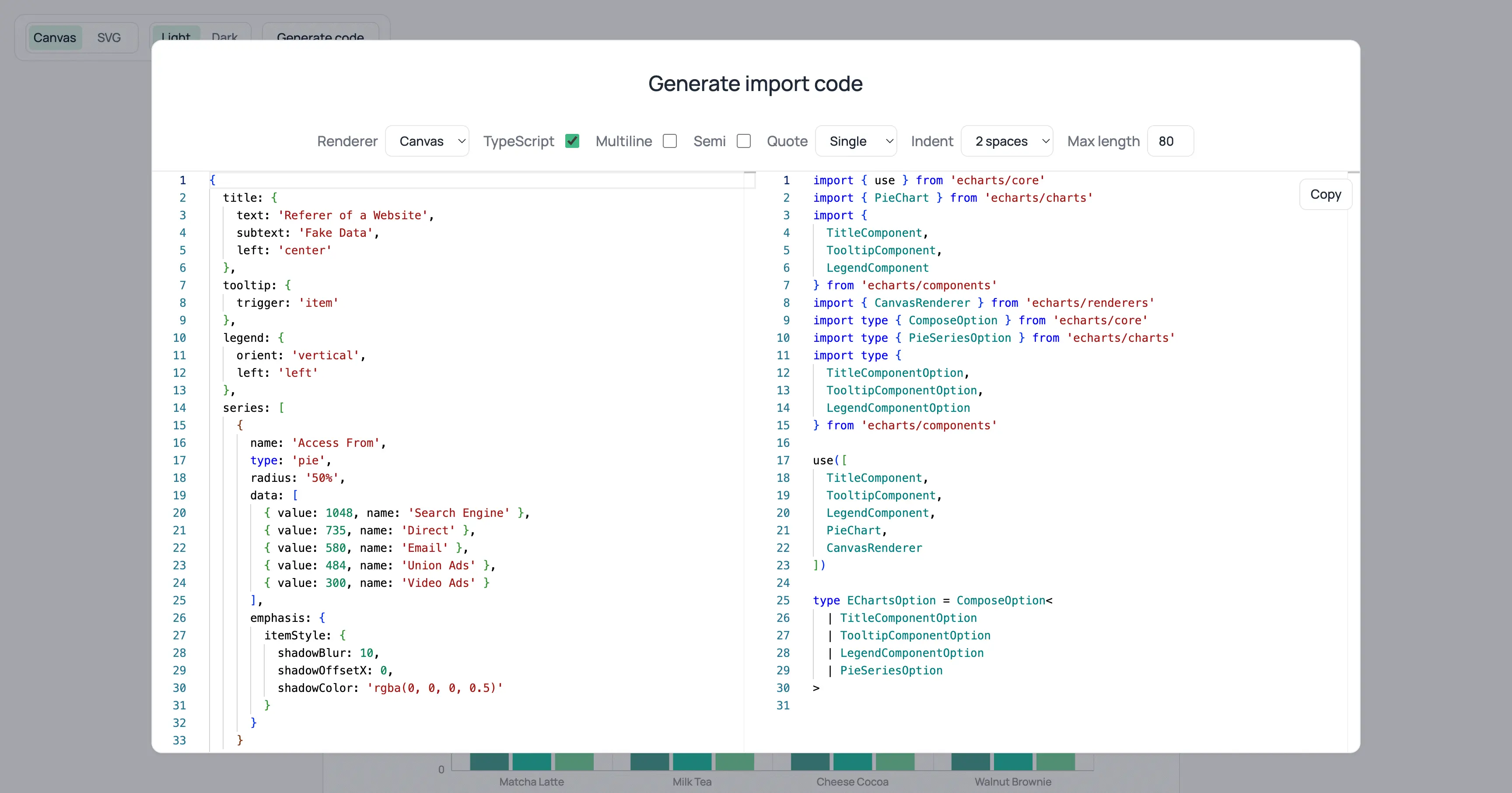

#### On-demand importing recommended To keep your bundle size small, we recommend manually importing the components and charts you need from ECharts. To make this easier, we’ve created an [import code generator](https://vue-echarts.dev/#codegen). Simply paste your `option` code into the tool, and it will generate the exact import statements for you. A modal for generating ECharts import code. The left panel shows a chart configuration in JSON, while the right panel displays TypeScript import statements for ECharts charts and components. [Try it →](https://vue-echarts.dev/#codegen) But if you really want to import the whole ECharts bundle without having to import modules manually, just add this in your code: ```js import "echarts"; ``` ### CDN Drop ` ``` ```js const app = Vue.createApp(...) // register globally (or you can do it locally) app.component('VChart', VueECharts) ``` See more examples [here](https://github.com/ecomfe/vue-echarts/tree/main/demo). ### Props - `init-options: object` Optional chart init configurations. See `echarts.init`'s `opts` parameter [here →](https://echarts.apache.org/en/api.html#echarts.init) Injection key: `INIT_OPTIONS_KEY`. - `theme: string | object` Theme to be applied. See `echarts.init`'s `theme` parameter [here →](https://echarts.apache.org/en/api.html#echarts.init) Injection key: `THEME_KEY`. - `option: object` ECharts' universal interface. Modifying this prop triggers Vue ECharts to compute an update plan and call `setOption`. Read more [here →](https://echarts.apache.org/en/option.html) #### Smart update - If you supply `update-options` (via prop or injection), Vue ECharts forwards it directly to `setOption` and skips the planner. - Manual `setOption` calls (only available when `manual-update` is `true`) behave like native ECharts, honouring only the per-call override you pass in and are not carried across re-initializations. - Otherwise, Vue ECharts analyses the change: removed objects become `null`, removed arrays become `[]` with `replaceMerge`, ID/anonymous deletions trigger `replaceMerge`, and risky changes fall back to `notMerge: true`. - `update-options: object` Options for updating chart option. If supplied (or injected), Vue ECharts forwards it directly to `setOption`, skipping the [smart update](#smart-update). See `echartsInstance.setOption`'s `opts` parameter [here →](https://echarts.apache.org/en/api.html#echartsInstance.setOption) Injection key: `UPDATE_OPTIONS_KEY`. - `group: string` Group name to be used in chart [connection](https://echarts.apache.org/en/api.html#echarts.connect). See `echartsInstance.group` [here →](https://echarts.apache.org/en/api.html#echartsInstance.group) - `autoresize: boolean | { throttle?: number, onResize?: () => void }` (default: `false`) Whether the chart should be resized automatically whenever its root is resized. Use the options object to specify a custom throttle delay (in milliseconds) and/or an extra resize callback function. - `loading: boolean` (default: `false`) Whether the chart is in loading state. - `loading-options: object` Configuration item of loading animation. See `echartsInstance.showLoading`'s `opts` parameter [here →](https://echarts.apache.org/en/api.html#echartsInstance.showLoading) Injection key: `LOADING_OPTIONS_KEY`. - `manual-update: boolean` (default: `false`) Handy for performance-sensitive charts (large or high-frequency updates). When set to `true`, Vue only uses the `option` prop for the initial render; later prop changes do nothing and you must drive updates via `setOption` on a template ref. If the chart re-initializes (for example due to `init-options` changes, flipping `manual-update`, or a remount), the manual state is discarded and the chart is rendered again from the current `option` value. ### Events You can bind events with Vue's `v-on` directive. ```vue ``` > [!NOTE] > Only the `.once` event modifier is supported as other modifiers are tightly coupled with the DOM event system. Vue ECharts support the following events: - `highlight` [→](https://echarts.apache.org/en/api.html#events.highlight) - `downplay` [→](https://echarts.apache.org/en/api.html#events.downplay) - `selectchanged` [→](https://echarts.apache.org/en/api.html#events.selectchanged) - `legendselectchanged` [→](https://echarts.apache.org/en/api.html#events.legendselectchanged) - `legendselected` [→](https://echarts.apache.org/en/api.html#events.legendselected) - `legendunselected` [→](https://echarts.apache.org/en/api.html#events.legendunselected) - `legendselectall` [→](https://echarts.apache.org/en/api.html#events.legendselectall) - `legendinverseselect` [→](https://echarts.apache.org/en/api.html#events.legendinverseselect) - `legendscroll` [→](https://echarts.apache.org/en/api.html#events.legendscroll) - `datazoom` [→](https://echarts.apache.org/en/api.html#events.datazoom) - `datarangeselected` [→](https://echarts.apache.org/en/api.html#events.datarangeselected) - `timelinechanged` [→](https://echarts.apache.org/en/api.html#events.timelinechanged) - `timelineplaychanged` [→](https://echarts.apache.org/en/api.html#events.timelineplaychanged) - `restore` [→](https://echarts.apache.org/en/api.html#events.restore) - `dataviewchanged` [→](https://echarts.apache.org/en/api.html#events.dataviewchanged) - `magictypechanged` [→](https://echarts.apache.org/en/api.html#events.magictypechanged) - `geoselectchanged` [→](https://echarts.apache.org/en/api.html#events.geoselectchanged) - `geoselected` [→](https://echarts.apache.org/en/api.html#events.geoselected) - `geounselected` [→](https://echarts.apache.org/en/api.html#events.geounselected) - `axisareaselected` [→](https://echarts.apache.org/en/api.html#events.axisareaselected) - `brush` [→](https://echarts.apache.org/en/api.html#events.brush) - `brushEnd` [→](https://echarts.apache.org/en/api.html#events.brushEnd) - `brushselected` [→](https://echarts.apache.org/en/api.html#events.brushselected) - `globalcursortaken` [→](https://echarts.apache.org/en/api.html#events.globalcursortaken) - `rendered` [→](https://echarts.apache.org/en/api.html#events.rendered) - `finished` [→](https://echarts.apache.org/en/api.html#events.finished) - Mouse events - `click` [→](https://echarts.apache.org/en/api.html#events.Mouse%20events.click) - `dblclick` [→](https://echarts.apache.org/en/api.html#events.Mouse%20events.dblclick) - `mouseover` [→](https://echarts.apache.org/en/api.html#events.Mouse%20events.mouseover) - `mouseout` [→](https://echarts.apache.org/en/api.html#events.Mouse%20events.mouseout) - `mousemove` [→](https://echarts.apache.org/en/api.html#events.Mouse%20events.mousemove) - `mousedown` [→](https://echarts.apache.org/en/api.html#events.Mouse%20events.mousedown) - `mouseup` [→](https://echarts.apache.org/en/api.html#events.Mouse%20events.mouseup) - `globalout` [→](https://echarts.apache.org/en/api.html#events.Mouse%20events.globalout) - `contextmenu` [→](https://echarts.apache.org/en/api.html#events.Mouse%20events.contextmenu) - ZRender events - `zr:click` - `zr:mousedown` - `zr:mouseup` - `zr:mousewheel` - `zr:dblclick` - `zr:contextmenu` See supported events in the [ECharts API reference →](https://echarts.apache.org/en/api.html#events) #### Native DOM events As Vue ECharts binds events to the ECharts instance by default, there is some caveat when using native DOM events. You need to prefix the event name with `native:` to bind native DOM events. ```vue ``` ### Provide / inject Vue ECharts provides provide/inject API for `theme`, `init-options`, `update-options` and `loading-options` to help configuring contextual options. eg. for `theme` you can use the provide API like this:
Composition API ```js import { THEME_KEY } from "vue-echarts"; import { provide } from "vue"; provide(THEME_KEY, "dark"); // or provide a ref const theme = ref("dark"); provide(THEME_KEY, theme); // getter is also supported provide(THEME_KEY, () => theme.value); ```
Options API ```js import { THEME_KEY } from 'vue-echarts' import { computed } from 'vue' export default { { provide: { [THEME_KEY]: 'dark' } } } // Or make injections reactive export default { data() { return { theme: 'dark' } }, provide() { return { [THEME_KEY]: computed(() => this.theme) } } } ```
### Methods - `setOption` [→](https://echarts.apache.org/en/api.html#echartsInstance.setOption) - `getWidth` [→](https://echarts.apache.org/en/api.html#echartsInstance.getWidth) - `getHeight` [→](https://echarts.apache.org/en/api.html#echartsInstance.getHeight) - `getDom` [→](https://echarts.apache.org/en/api.html#echartsInstance.getDom) - `getOption` [→](https://echarts.apache.org/en/api.html#echartsInstance.getOption) - `resize` [→](https://echarts.apache.org/en/api.html#echartsInstance.resize) - `dispatchAction` [→](https://echarts.apache.org/en/api.html#echartsInstance.dispatchAction) - `convertToPixel` [→](https://echarts.apache.org/en/api.html#echartsInstance.convertToPixel) - `convertFromPixel` [→](https://echarts.apache.org/en/api.html#echartsInstance.convertFromPixel) - `containPixel` [→](https://echarts.apache.org/en/api.html#echartsInstance.containPixel) - `getDataURL` [→](https://echarts.apache.org/en/api.html#echartsInstance.getDataURL) - `getConnectedDataURL` [→](https://echarts.apache.org/en/api.html#echartsInstance.getConnectedDataURL) - `clear` [→](https://echarts.apache.org/en/api.html#echartsInstance.clear) - `dispose` [→](https://echarts.apache.org/en/api.html#echartsInstance.dispose) > [!NOTE] > The following ECharts instance methods aren't exposed because their functionality is already provided by component [props](#props): > > - [`showLoading`](https://echarts.apache.org/en/api.html#echartsInstance.showLoading) / [`hideLoading`](https://echarts.apache.org/en/api.html#echartsInstance.hideLoading): use the `loading` and `loading-options` props instead. > - [`setTheme`](https://echarts.apache.org/en/api.html#echartsInstance.setTheme): use the `theme` prop instead. ### Slots new Vue ECharts allows you to define ECharts option's [`tooltip.formatter`](https://echarts.apache.org/en/option.html#tooltip.formatter) and [`toolbox.feature.dataView.optionToContent`](https://echarts.apache.org/en/option.html#toolbox.feature.dataView.optionToContent) callbacks via Vue slots instead of defining them in your `option` object. This simplifies custom HTMLElement rendering using familiar Vue templating. #### Slot naming convention - Slot names begin with `tooltip`/`dataView`, followed by hyphen-separated path segments to the target. - Each segment corresponds to an `option` property name or an array index (for arrays, use the numeric index). - The constructed slot name maps directly to the nested callback it overrides. **Example mappings**: - `tooltip` → `option.tooltip.formatter` - `tooltip-baseOption` → `option.baseOption.tooltip.formatter` - `tooltip-xAxis-1` → `option.xAxis[1].tooltip.formatter` - `tooltip-series-2-data-4` → `option.series[2].data[4].tooltip.formatter` - `dataView` → `option.toolbox.feature.dataView.optionToContent` - `dataView-media-1-option` → `option.media[1].option.toolbox.feature.dataView.optionToContent` The slot props correspond to the first parameter of the callback function.
Usage ```vue ``` [Example →](https://vue-echarts.dev/#line)
> [!NOTE] > Slots take precedence over the corresponding callback defined in `props.option`. ### Static methods Static methods can be accessed from [`echarts` itself](https://echarts.apache.org/en/api.html#echarts). ## CSP: `style-src` or `style-src-elem` If you are **both** enforcing a strict CSP that prevents inline `
